Presenting the WBI414F23, an advanced AC Current Transducer capable of converting AC input currents, even up to 400A, into a precise DC 4-20mA output signal.
The transducer's output signal, available in either voltage or current form, maintains a proportional relationship with the rectified average value of the input AC current or faithfully mirrors the input current wave. Its adaptability extends to a variety of applications, including fixed-frequency voltage supplies and power distribution cabinets.
|

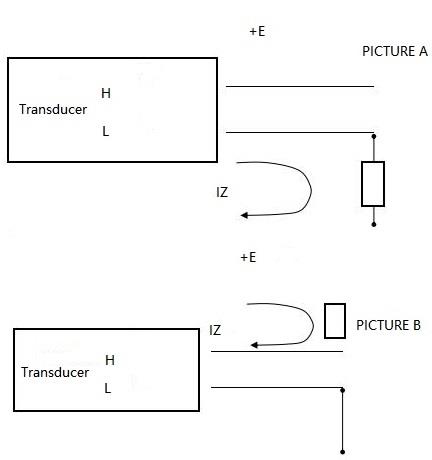

Connections Wiring of terminals
|
|
Hot Tags: 400a ac current transducer 4-20ma output, China, suppliers, factory, price, AC Current Monitor Current Sensor 100A, 10A Active Current Transducer Anti interference, Current Monitoring Sensor For Industrial Control, Analog Signal Transmitter Slim Type RTD, Current Sensor Arduino, True RMS Converter 4 20mA Output
|
Rated input current |
30A, 50A, 100A, 150A, 200A, 300A, 350A, 400A AC |
|
Output signals |
4-20mA DC |
|
Accuracy |
0.5% |
|
Input impedance |
approximate zero |
|
Responding time |
300ms |
|
Frequency range |
25Hz～5kHz |
|
Output impedance |
6V |
|
Power supply |
+12V/+24V DC |
|
Isolation voltage |
≥2500Vdc, for 1 minute |
|
Output ripple |
＜6mV |
|
Thermal drift |
350ppm/°C |
|
Ambient temperature |
-10℃～+50℃ |
|
Mounting type |
DIN rail 35mm mount or screw mount |
|
Material of shell |
ABS (According to UL94V-0) |
|
Protection of shell |
IP20 |
|
Shell type |
with aperture Ф20mm |
|
MTBF |
>50000h |
|
Weight |
120g |
