0-10V Closed Loop Hall Effect AC Current Sensor

WBI022F21(0-10V Closed Loop Hall Effect AC Current Sensor) uses the principle of electromagnetic induction and Hall effect to measure the AC and DC current in the grid or circuit in real time and convert it into a standard DC voltage (Uz)-output.

0-10V Closed Loop Hall Effect AC Current Sensor adopts the average conversion technology and magnetic compensation technology to reduce temperature drift, and has the advantages of good temperature stability, common AC and DC current, strong overload capability and high isolation.

0-10V Closed Loop Hall Effect AC Current Sensor is suitable for real-time detection of power systems, post and telecommunications systems, railway monitoring systems, etc.

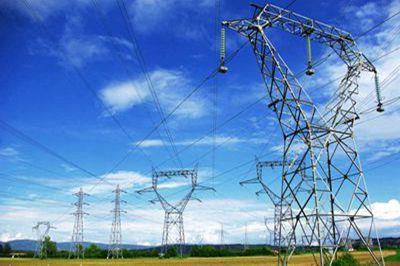

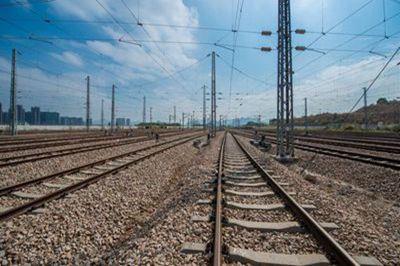

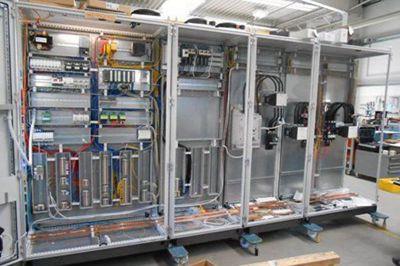

Application industry:

Exhibitions:

Nuremberg Sensor+Test 2024                                 Nuremberg Sensor+Test 2025

June 11-June 13, Nuremberg, Germany                  May 6-June 8, Nuremberg, Germany
Booth no. 1-621                                                       Booth no. 1-651

Hot Tags: 0-10V Closed Loop Hall Effect AC Current Sensor, China, suppliers, factory, price, 0 10V Out Hall Effect Current Transducer, 4 20ma Hall Effect Current Transducer, 4 20ma Hall Effect Current Sensor, 100A 300A In Hall Effect Current Transducer

1. Input: 20A~100A;

2. Output: 0-5V, 0-10V;

3. Accuracy level: 1.0;

4. Linear range: 0% to 120% nominal input;

5. Response time: 300ms;

6. Load capacity: ≤1KΩ;

7. Auxiliary power supply: 12V, 24V;

8. Quiescent current: 25mA;

9. Output ripple: ≤10mV;

10. Insulation resistance: >20MΩ;

11. Ambient temperature: -25 ° C ~ +70 ° C;

12. Temperature drift: 20A ~ 50A input 400 × 10-6 / ° C ,

                                 50A ~ 100A input 300 × 10-6 / ° C .
