WB9128-1 Multifunction Power Meter 4-20mA Output adopts special made isolation module, professional MCU controller and high speed data synchronizing sampling and processing technologies to isolate and convert active power of 3 phase 4 wire electric system or 3 phase 3 wire system into RS485 bus and load independent output DC average current signal 4-20mA or 0-20mA and DC voltage signal 0-5V or 1-5V;
Multifunction Power Meter 4-20mA Output has certain advantages of input/output isolation, high performance, low drifting by temperature, and low power consuming, etc.
Hot Tags: Multifunction Power Meter 4-20mA Output, China, suppliers, factory, price
1. Input: Phase Voltage AC 57.7V ~ 289V; Line Voltage AC 100V ~500V; Current AC 1A~ 50A;

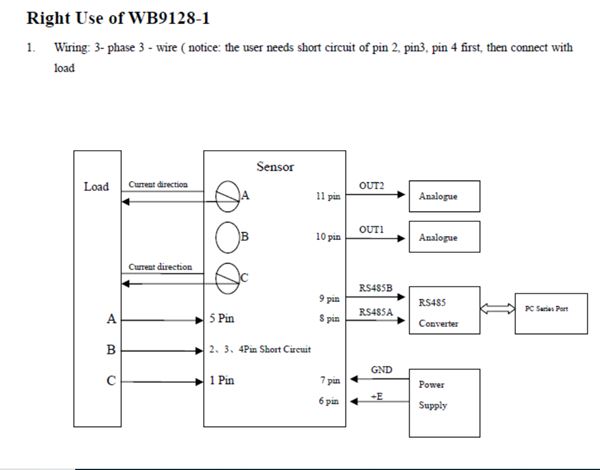

2. Input Configuration System: 3- phase 3- wire; 3- phase 4- wire;
3. Linear Measurement Range: Voltage 20% - 100% of rated input voltage; Current 1% - 100% of rated input current; Power Factor: -0.1 – 1.0 – 0.1;
4. Input Frequency: 50Hz;
5. Short Time Over Load Capacity: 2 times of input voltage, continuous 1 second, interval 10 seconds; repeat 10 times; 20 times of input current, continuous 1 second, interval 300 seconds, repeat 5 times;

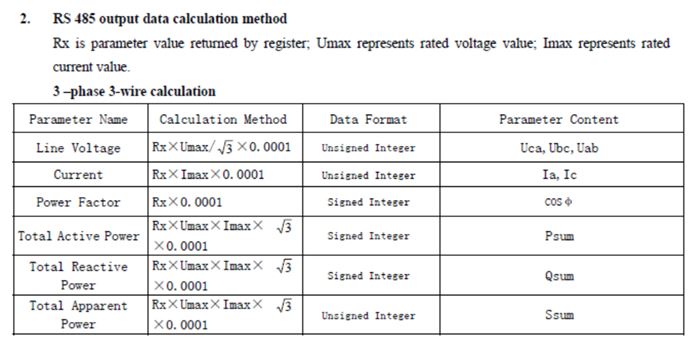

6. Output Types: One channel RS 485; 2 – Channel analogue quantities;

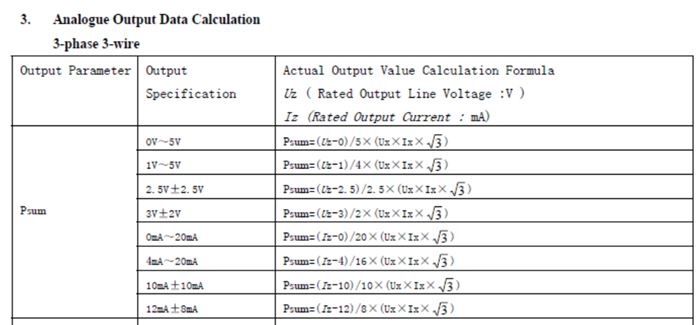

7. Analogue Output Specifications: DC Voltage output:2.5V±2.5V; 0-5V; 1..5V;3V±2V; DC Current:10mA ± 10mA; 0-20mA; 4-20mA; 12mA±8mA;
