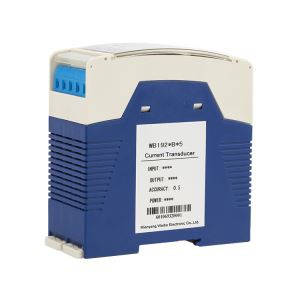

WBI342U01-S(Current Transducer with 0-5VDC Output) converts DC input current into a load independent output signal DC 0-5V, or 0-10V. Current Transducer with 0-5VDC Output has adopted electromagnetic isolation principle for real time measurement of DC current from electric net or electric circuit.
Advantages:
Strong overload capability,
High reliability,
Fast response,
High precision.
Applications:
AC power distribution system: such as power distribution cabinet, railway power supply;
Signal monitoring: such as AC current monitoring for filament relay, input signal monitoring for motor, etc.
| How to choose current sensor | |||||||||
| 1. Determine AC or DC. | |||||||||
| 2. Determine the detection current: 1mA, 5mA, 20mA, 75mA, 0.2A, 0.5A, 1A, 2A, 5A, 10A, 15A, 20A, 30A, 50A, 100A, 200A, 300A, 400A, etc. | |||||||||
| 3. Determine the output signal: 0-5V, 0-10V, 1-5V, 1-10V, 4-20mA, 0-20mA, etc. | |||||||||
| 4. Confirm the auxiliary power: DC 12V, 24V. |
Our company
Mianyang Weibo Electronic Co., Ltd. is a national high-tech enterprise, mainly engaged in the research and development, production and sales of electrical isolation transducers, smart power transmitters, measuring instruments and other products. The "Weibo" trademark was successively rated as a famous trademark in Sichuan Province from 2014 to 2017. In 2021, it was successfully selected as a national-level specialized and special new "Little Giant" enterprise by the Ministry of Industry and Information Technology.
The WB series electrical isolation transducer was rated as the 10th and 11th Sichuan Famous Brand Product. Under the leadership and promotion of the company, an emerging modular isolation detection industry has been formed nationwide. The company strives for survival by quality, takes the image of honesty and trust, expands the market with service, and insists on the core value of "innovation, trust, efficiency and responsibility", with creating the "China first and world-renowned" brand as its corporate development goal, and is determined to climb the new peak of measurement and control technology.
Hot Tags: Current Transducer with 0-5VDC Output, China, suppliers, factory, price, 0 10V Output DC Voltage Transducer, DC Voltage Sensor With Digital Output, 24VDC Powered, True RMS, CE Certification, Current To Voltage
1. Input: DC 0~1mA…0~5A;
2. Output: 0-5VDC; 0-10V DC;
3. Accuracy: 0.2%
4. Input impedance (R): Ri＝0.05V/Ix (Ix is the current to be measured)
5. Linear range: 0-120% of nominal input
6. Responding time: 150ms
7. Over load capacity: 10 times of nominal input, for 5 seconds
8. Maximum load (Output current): 5mA
9. Static current: 10mA
10. Auxiliary power:+12VDC; +24VDC
11. Isolation voltage: 2500Vdc, for 1 minute
12. Output ripple: ＜10mA
14. Drifting by temperature: 100×10-6/℃
15. Ambient temperature: -10℃～+50℃
16. Mounting: DIN rail 35mm mount
