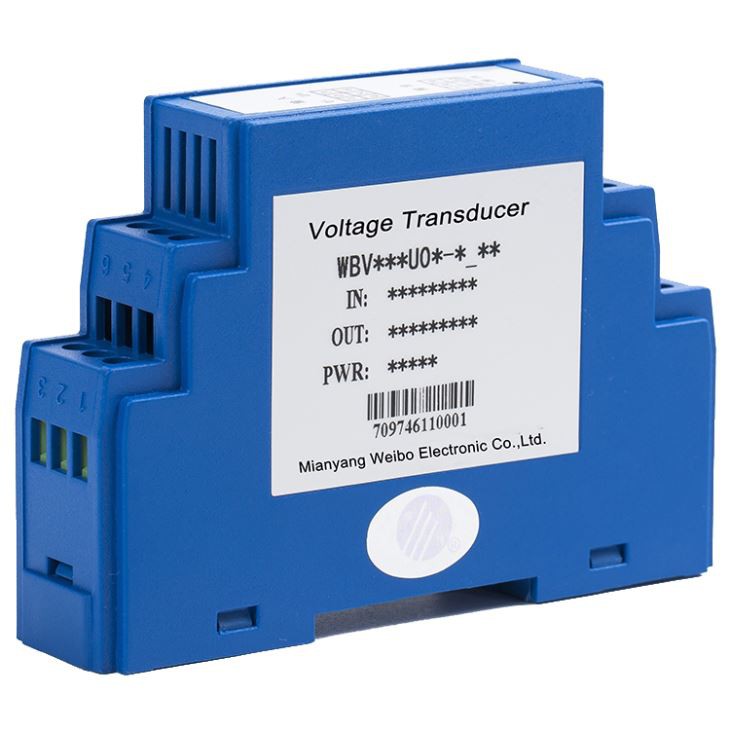

WBV414U09(AC Voltage Transducer Input 0-150V Output 4-20mA) converts AC input voltage into a load independent output signal DC 4-20mA. It has adopted electromagnetic isolation principle and average measurement method for real time measurement of AC voltage from electric net or electric circuit.
Key Technical Data:
Input: AC 0~10V…0~500V;
Output: DC 4-20mA
Frequency Range: 25Hz～5kHz
Accuracy: 0.5%
Input Impedance (R): When Ux≥10V，Ri＝Ux×1kΩ/V；
When Ux＜10V，Ri＝Ux×10kΩ/V；
Linear Range:0-120% of nominal input
Responding Time: 300ms
Over Load Capacity: 2 times of nominal input, continuous;
Maximum Load(Output voltage): 6V
Static Current: 8mA
Auxiliary Power: 12V or 24V DC;
Isolation Voltage(Input/output/power supply): 2500Vdc, for 1 minute
Output Ripple: ＜6mV
Drifting by Temperature: 3×10-4/℃
Ambient Temperature: -10℃～+50℃
Mounting: DIN rail 35mm mount
AC Voltage Transducer Advantages:
The annual output is 600,000 Pieces;
Electrically isolated between input and output;
Strong anti-interference ability.
AC Voltage Transducer Applications:
Intelligent low-voltage power distribution system;
Temperature and fire monitoring for transformer, fire monitoring for cable;
High-voltage switchgear fiber optic temperature measurement system;
Transformer contact monitoring.
