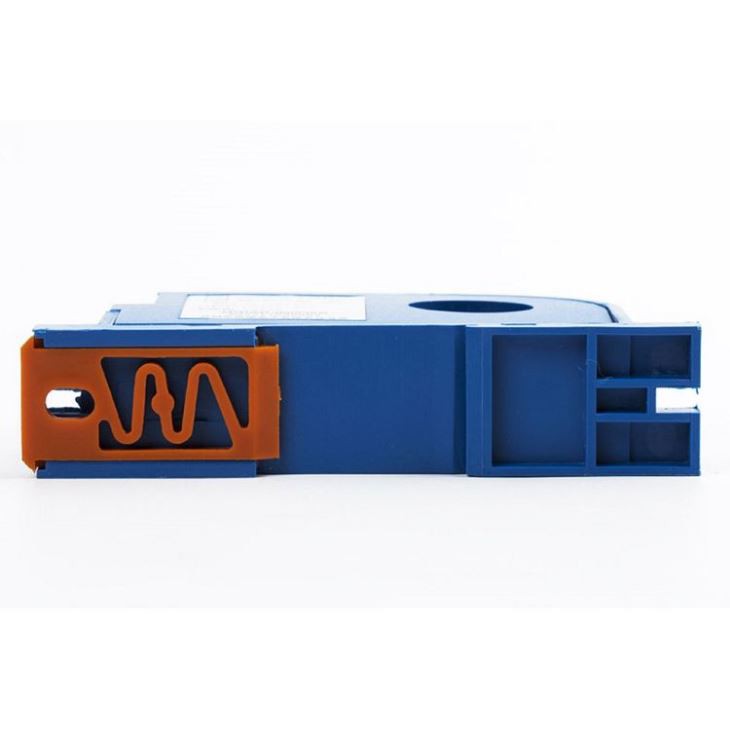

WBI414F23 converts AC input current into output signal DC 4-20mA. It has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit. The output signal (voltage or current) of this transducer is proportional to the rectified average value of input AC current or reflects the input current wave.
WBI414F23 is able to supply high performance Sensors for the Automotive, Medical, Turbine Engine, Modal & Structural Analysis, Agricultural, Automation, Robotic and Lab Testing Industries.
Advantages:
Total galvanic isolation between input/output,
High accuracy,
Low drifting by temperature,
Wide temperature bearable range.
The difference with peers:
Different raw materials
Different production processes
Different manufacturing equipment
Different quality standards
Hot Tags: 30A-400A Input AC Current Sensor(400A Max), China, suppliers, factory, price, 50 500A Input, 4 20mA Output, AC Current Transducer, Current Sensor Arduino, High Accuracy, AC Current Monitor Current Sensor 100A
|
Input current |
30A, 50A, 100A, 150A, 200A, 250A, 300A, 350A, 400A AC |
|
Output signals |
4-20mA DC |
|
Accuracy class |
0.5% |
|
Input impedance |
approximate zero |
|
Responding time |
300ms |
|
Frequency range |
25Hz～5kHz |
|
Output impedance |
6V |
|
Static current |
3.3mA(0mA-20mA) 6.8mA(4mA-20mA) |
|
Power supply |
+12V/+24V DC |
|
Output ripple |
＜6mV |
|
Thermal drift |
350ppm/°C |
|
Ambient temperature |
-10℃～+50℃ |
|
Mounting |
DIN rail 35mm mount or screw mount |
|
Material of shell |
ABS (According to UL94V-0) |
|
Protection of shell |
IP20 |
|
Shell type |
with aperture Ф20mm |
|
MTBF |
>50000h |
|
Weight |
120g |
