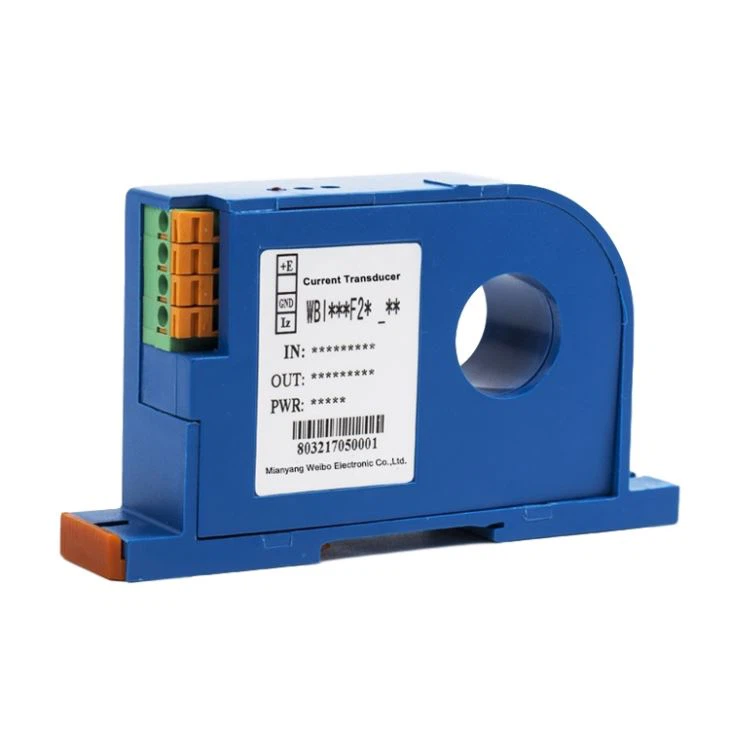

WBI414F23(30A to 400A Input AC Current Converter) converts AC input current into output signal DC 4-20mA. It has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit. The output signal (voltage or current) of this transducer is proportional to the rectified average value of input AC current or reflects the input current wave.
Pictures of Company
Mianyang Weibo Eelctronic Co.,Ltd is located in Mianyang City, Sichuan Province. Over the years, the company has paid great attention to the building the R & D and independent innovation capacities and is determined to climb the new peak of measurement and control technology.
The company strives for survival by quality, takes the image of honesty and trust, expands the market with service, and insists on the core value of "innovation, trust, efficiency and responsibility", with creating the "China first and world-renowned" brand as its corporate development goal, and is determined to climb the new peak of measurement and control technology.
Hot Tags: 30A to 400A Input AC Current Converter, China, suppliers, factory, price, Current Transducer 2A, Current Sensor Arduino, AC Current Monitor Current Transducer 100A, Current Transdcuer 4 20mA, 0 10V Output AC Voltage Transducer, 10A Active Current Transducer Anti interference
Specifications of 30A to 400A Input AC Current Converter:
Rated input current | 30A, 50A, 100A, 150A, 200A, 250A, 300A, 350A, 400A AC |
Output signals | 4-20mA DC |
Accuracy | 0.5% |
Input impedance | approximate zero |
Responding time | 300ms |
Frequency range | 25Hz～5kHz |
Output impedance | 6V |
Static current | 3.3mA(0mA-20mA) 6.8mA(4mA-20mA) |
Power supply | +12V/+24V DC |
Output ripple | ＜6mV |
Thermal drift | 350ppm/°C |
Ambient temperature | -10℃～+50℃ |
Mounting type | DIN rail 35mm mount or screw mount |
Material of shell | ABS (According to UL94V-0) |
Protection of shell | IP20 |
Shell type | with aperture Ф20mm |
MTBF | >50000h |
Weight | 120g |
