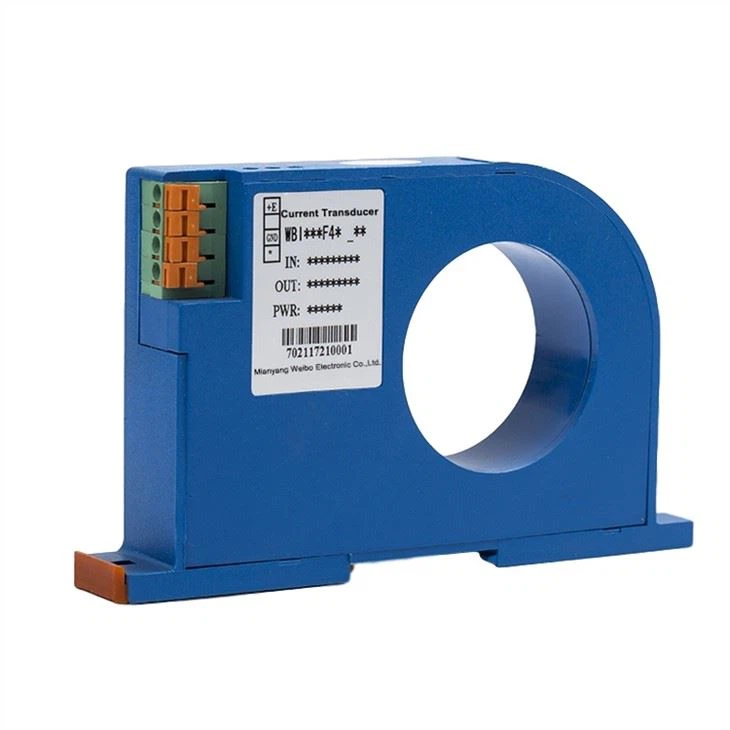

WBI414F43(Current Signal Conditioner 0 → 500 A Input, 4 → 20 MA Output) converts AC input current into output signal DC 4-20mA. It has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit.
|
Applications Suitable for the current monitoring and measuring; Automatic monitoring and control; Electrical signal detection and modulation; Data acquisition. |
Advantages: 27000 square meters non-dust workshop, Over 30 years' experience, Application in high speed railway, ISO, EMC, ETC certificated. |
Our company
Mianyang Weibo Electronic Co., Ltd. is a national high-tech enterprise, mainly engaged in the research and development, production and sales of electrical isolation transducers, digital power transducers, measuring instruments and other products. The "Weibo" trademark was successively rated as a famous trademark in Sichuan Province from 2014 to 2017. In 2021, it was successfully selected as a state-level technologically advanced "Little Giant" enterprise by the Ministry of Industry and Information Technology.
The WB series electrical isolation transducer was rated as the 10th and 11th Sichuan Famous Brand Product. The company strives for survival by quality, takes the image of honesty and trust, expands the market with service, and insists on the core value of "innovation, trust, efficiency and responsibility", with creating the "China first and world-renowned" brand as its corporate development goal, and is determined to climb the new peak of measurement and control technology.
Hot Tags: Current Signal Conditioner 0 → 500 A Input, 4 → 20 MA Output, China, suppliers, factory, price, High Accuracy, Analog Signal Transmitter Slim Type RTD, 50 500A Input Current Transducer Arduino, Non Invasive AC Voltage Sensor, 30A 400A Input AC Current Sensor 400A Max , AC Current Monitor Current Sensor 100A
Input Range: AC 0~50A…0~500A
Output Range: DC 4-20mA
Supply Voltage: +12V/+24VDC
Frequency Range: 25Hz～5kHz
Accuracy Class: 0.5%
Responding Time: 300ms
Drifting by Temperature: 3.5×10-4/℃
Ambient Temperature: 0℃～+50℃
Mounting Type: DIN rail 35mm mount or screw mount
