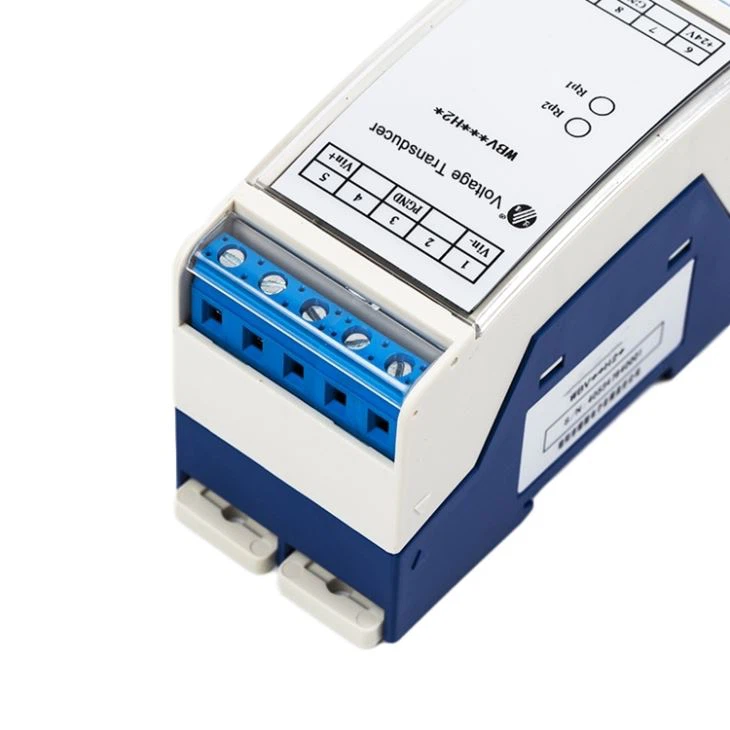

WBV414H29(Voltage Sensor 60V) uses a special isolation module to measure the AC voltage in the power grid and circuit in real time, and convert it into DC current (Iz) output of 4mA~20mA or 0mA~20mA standard.
Advantages: High precision, High isolation, Low power consumption, Low drift, Wide temperature range, Anti-interference, Strong ability, Wide working power range. | Applications: Intelligent low-voltage power distribution system; DC power screen, box substation; Temperature and fire monitoring for transformer, fire monitoring for cable; High-voltage switchgear fiber optic temperature measurement system; Transformer contact monitoring. |

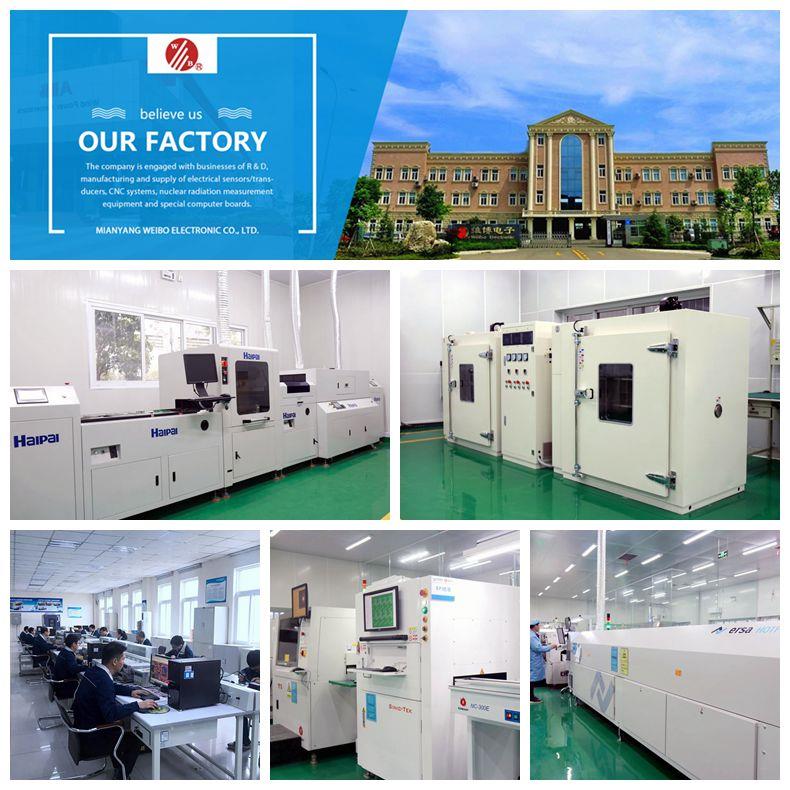

Our company
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally the goods are not in stock. It takes 3-30 days after payment and it is according to quantity.
Q:Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products for non-man-made reasons.
Hot Tags: voltage transducer 60v, China, suppliers, factory, price, 4 20mA Sensor AC Voltage Sensor Arduino, Voltage Sensor 30V, High Accuracy AC Voltage Transducer, 0 20mA Output AC Voltage Transducer, 10V 500V Input AC Voltage Transducer, 0 10V Output AC Voltage Sensor
Voltage Transducer 60V Specifications:
1.Input: AC10V, 50V, 100V, 500V;
Output: DC 4-20mA;
Power supply: AC/DC 85V-265V;
2. Accuracy level: 0.2;
3. Frequency response: 25Hz ~ 5kHz;
4. Response time: 200ms;
5. Load capacity: 6mA;
6. Isolation withstand voltage:
DC>2500V between input and output, 1min,
DC> 2500V between power supply and input, 1min,
DC>2500V between power supply and output, 1min;
7. Output ripple: ≤10mV (effective value);
8. Ambient temperature: -25 ° C ~ +70 ° C;
9. Temperature drift: 350 × 10-6 / °C.
10. Electromagnetic compatibility standards: EN61326:2006.
11. Safety standards: EN60100:2001.
