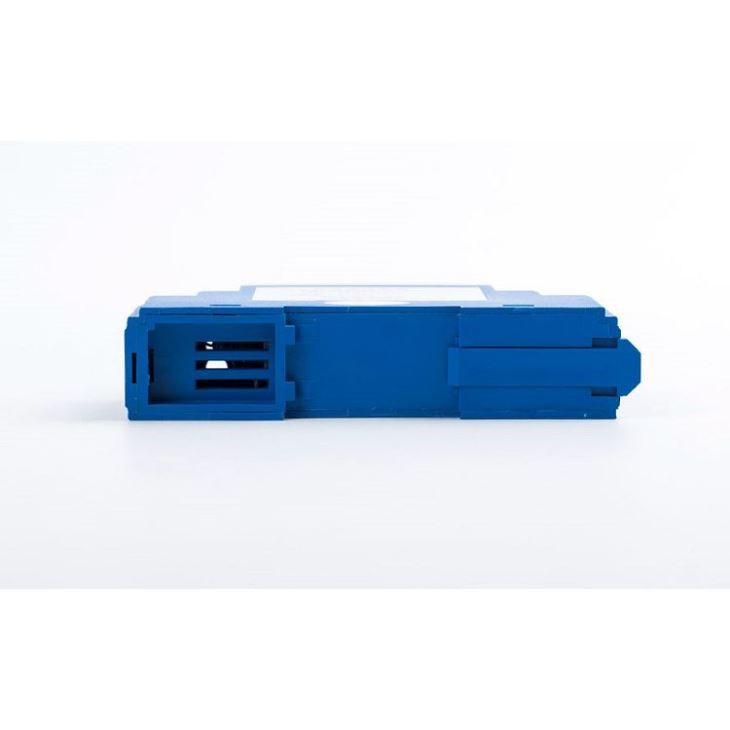

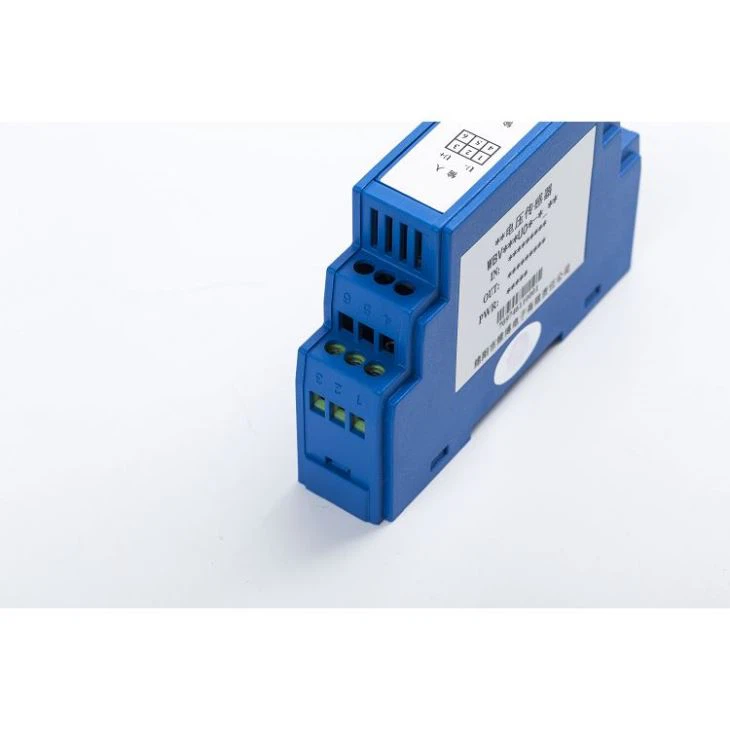

WBV342U05-S(0-5V Analog Output Voltage Sensor) converts pure DC input voltage into a load independent output signal DC voltage 0-5V or 0-10V. 0-5V Analog Output Voltage Sensor has adopted modulation-demodulation isolation principle and average measurement method for real time measurement of DC voltage from power grid and circuit.
Advantages:
Total galvanic isolation between input/output,
High accuracy,
Low drifting by temperature,
Wide temperature bearable range.
Applications:
Intelligent low-voltage power distribution system;
DC power screen, box substation;
Temperature and fire monitoring for transformer, fire monitoring for cable;
High-voltage switchgear fiber optic temperature measurement system;
Transformer contact monitoring.
Hot Tags: 0-5V Analog Output Voltage Sensor, China, suppliers, factory, price, 3 Phase 4 Wire, DC Voltage Transducer 4 20mA Analog Output, 75mV 500V Input DC Voltage Transducer Max 500V , MYWE Slim Type RTD Isolated Transmitter, Signal Conditioners, CE Certification
Rated input voltage | 10mV, 50mV, 75mV, 5V, 50V, 75V, 150V, 200V, 300V, 400V, 500V, 750V, 1000V DC |
Output signals | 0-5V ,0-10V DC |
Accuracy | 0.2% |
Input impedance | approximate zero |
Responding time | 200ms |
Power supply | +12V, +24V AC/DC |
Isolation voltage | ≥2500V DC, for 1 minute |
Thermal drift | 200ppm/°C |
Ambient temperature | -25℃～+70℃ |
Mounting | DIN rail 35mm mount or screw mount |
Material of shell | ABS (According to UL94V-0) |
Protection of shell | IP20 |
Protection class | Surge: 2kV; Electrostatic discharge: 6kV/8kV; Electrical fast transient burst: 2kV. |
MTBF | >50000h |
Weight | 90g |
