WBV122S01(75mV-500V Input DC Voltage Sensor) adopts linear photoelectric isolation principle and average value conversion technology to measure the AC and DC currents in the power grid or circuit in real time and convert it into DC voltage (Uz) output. 75mV-500V Input DC Voltage Sensor adopts card-mounted structure, terminal wiring and easy installation. Suitable for isolated measurements of sine waves and bidirectional DC voltages.
Advantages:
High precision,
High isolation,
Low power consumption,
Low drift,
Wide temperature range,
Anti-interference,
Strong ability,
Wide working power range.
Applications:
Suitable for the current measuring,
Automatic monitoring and control,
Electrical signal detection and modulation,
Data acquisition.
Hot Tags: 75mV-500V Input DC Voltage Sensor(Max 500V), China, suppliers, factory, price, MYWE DC Voltage Sensor Analog Output, 3 Phase 4 Wire, MYWE Slim Type RTD Isolated Transmitter, 3 Phase 3 Wire, DC Voltage Transducer 4 20mA Analog Output, Voltage Sensor
Rated input voltage | 75mV,30V, 50V, 100V, 250V, 200V, 500V AC/DC |
Output signals | 0-5V ,0-10V DC |
Accuracy | 0.5% |
Input impedance | approximate zero |
Responding time | 250ms |
Static current | 34mA |
Power supply | +12V, +24V DC |
Isolation voltage | ≥1500V DC, for 1 minute |
Thermal drift | 250ppm/°C |
Ambient temperature | -25℃～+70℃ |

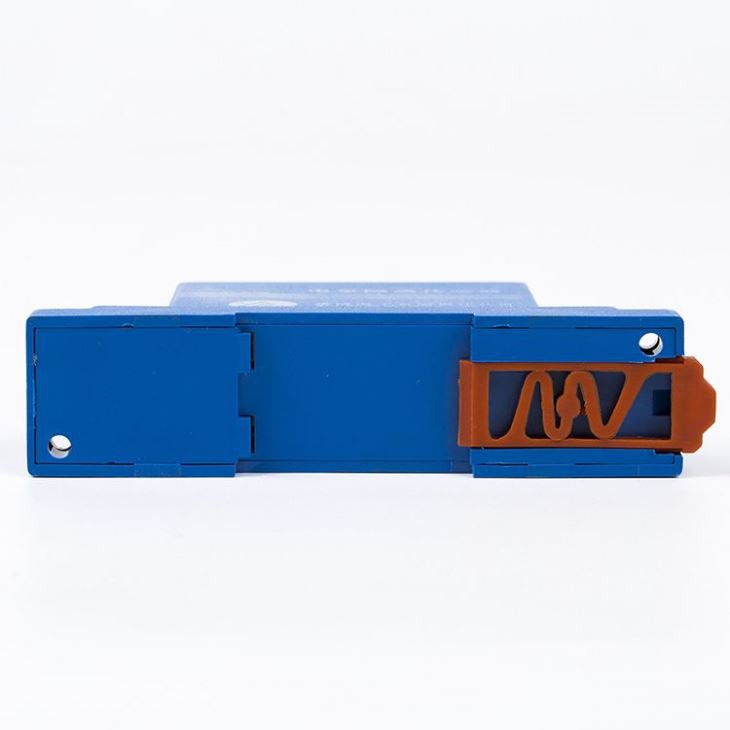

Mounting type | DIN rail 35mm mount or screw mount |
Material of shell | ABS (According to UL94V-0) |
Protection of shell | IP20 |
MTBF | >50000h |
Weight | 90g |
