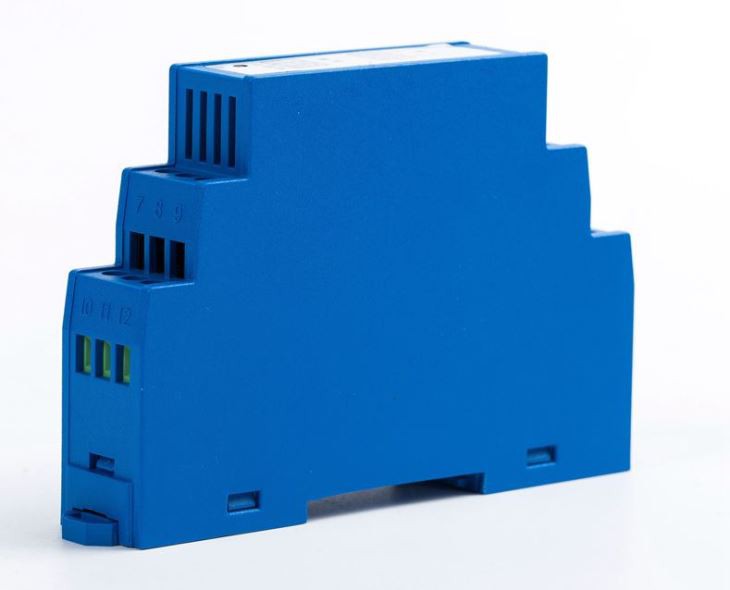

WBK1V1DU01(0-1000V Input AC Voltage Monitoring Using Arduino) uses a special isolation module to monitor the AC voltage in the power grid and circuit in real time. When the AC voltage exceeds the set upper limit value, the output exceeds the limit alarm signal, and the output signal is the relay contact signal. The operating limit value of the AC voltage can be arbitrarily set within the input range. The input and output of the product are completely isolated, with high precision, high isolation and low drift. It can be applied to motor overload monitoring, power loss detection, motion verification, signal isolation conversion and other occasions.
Pictures of Company
Mianyang Weibo Electronic Co., Ltd. is a leading provider of measurement and control solutions in China. The company is committed to providing customers with innovative products, services and solutions that meet customers’ needs, creating long-term value and potential growth for customers.
The company strives for survival by quality, takes the image of honesty and trust, expands the market with service, and insists on the core value of "innovation, trust, efficiency and responsibility", with creating the "China first and world-renowned" brand as its corporate development goal, and is determined to climb the new peak of measurement and control technology.
Hot Tags: 0-1000V Input AC Voltage Monitoring Using Arduino, China, suppliers, factory, price, 4 20mA Current Signal Conditioner in stock, 10V 1000V Input AC Voltage Monitoring Switch, , Power Monitoring Equipment Current Switch, 4 20mA Current Signal Conditioner
0-1000V Input AC Voltage Monitoring Using Arduino Attribute:
1. Input range: AC 10V, 50V, 100V, 220V, 380V, 500V, 800V, 1000V;
2. Action error: <Set the AC voltage limit value ± 2%;
3. Return difference: <Set the AC voltage limit value -20%
(if <Set the AC voltage limit value +20%, choosing WBK1V3DU01);
4. Response frequency: 25Hz ~ 3kHz (sine wave);
5. Response time: 300ms;
6. Load capacity: AC 240V/1A or DC 30V/2A;
7. Auxiliary power supply: DC 12V, 24V;
8. Static working current: <10mA;
9. Working current during operation: <30mA;
10. Isolation withstand voltage: ≥DC 2500V, 1min;
11. Environmental conditions: Commercial grade: 0 ° C ~ 50 ° C,
12. Input impedance: Ri=Ux×1kΩ/V (Ux represents the measured input voltage);
13. Input overload capability: 2 times the nominal input voltage value, lasting 1 s, interval 10s, repeated 10 times;
14. When the input AC voltage limit value is input, the relay moving contact is disconnected from the normally open contact and is connected to the normally closed contact.
When the >AC voltage limit value is set, the relay moving contact is connected to the normally open contact and is disconnected from the normally closed contact.
